In the article, consider how to replace the elements of filters and removing the car air filter housing

Replacing the air filter

The cabin filter is installed in front of the outer air intake channel and ensures filtering and purification of air from dust before entering the salon.

The filter element is installed in the body of the heating unit, air conditioning and ventilation, located in the cabin of the car over the instrument panel

The cabin filter is replaced with each car maintenance. Depending on the operating conditions, the filter element can be replaced more

We prepare the car and open the right front door. For convenience, the right passenger seat we move as much as possible.

We raise or clean the rug

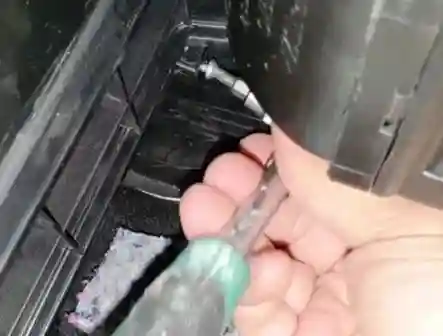

Using the TORX T20 key, unscrew the screw mounting screw

 Замена фильтра воздуха салонаЗамена фильтра воздуха салона

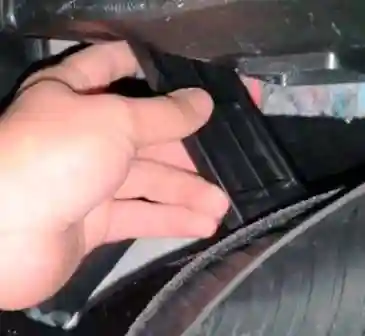

Remove the lid to access the salon filter

 Замена фильтра воздуха салонаЗамена фильтра воздуха салона

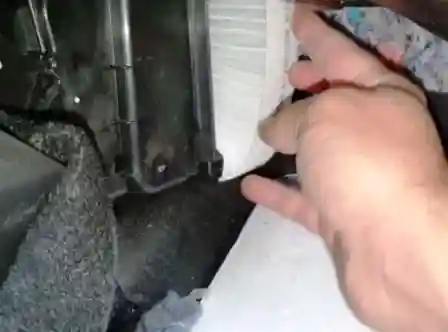

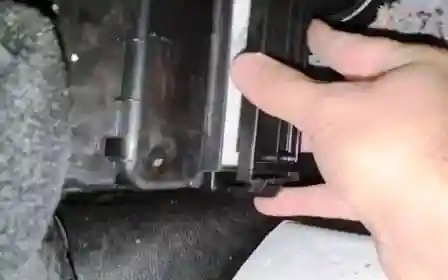

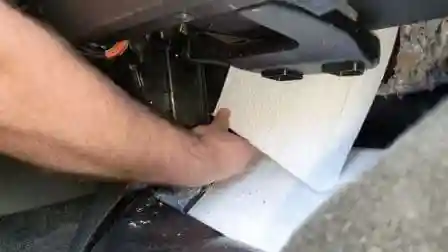

Take out the old filter element

 Замена фильтра воздуха салона

Insert a new filter element, close the lid and twist the screw fastening screw

Replacing the filter element of the air filter engine

The filter element is replaced after 15 thousand km of the car.But it depends on the operating conditions of the car.If the car is operated in complex dyed conditions, then you need to replace the filter more often

Open the hood of the car

 Замена воздушного фильтра Рено АрканаЗамена воздушного фильтра Рено Аркана

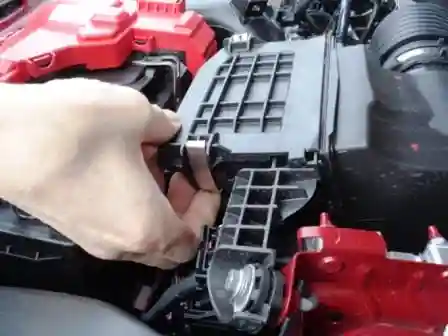

The filter cover holds with two spring retainers

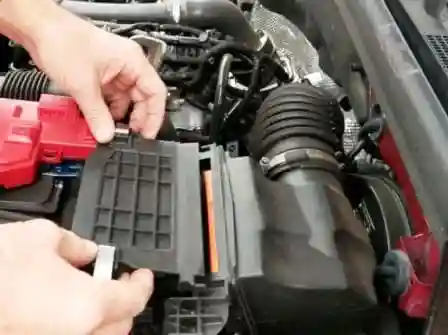

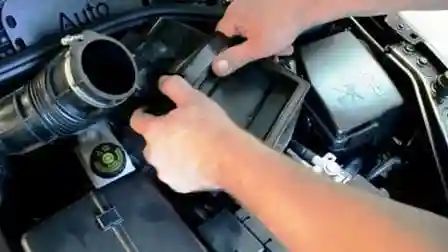

While lid locks on both sides and remove the filter cover

 Замена воздушного фильтра Рено АрканаЗамена воздушного фильтра Рено Аркана

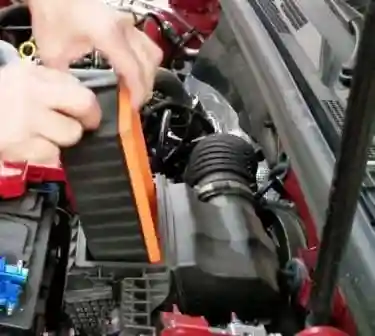

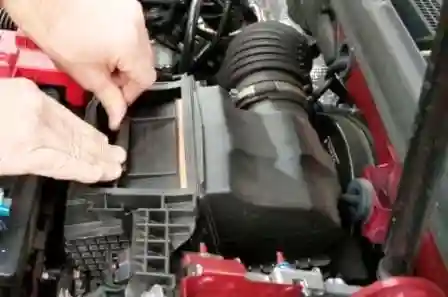

Remove the pencils with the filter element

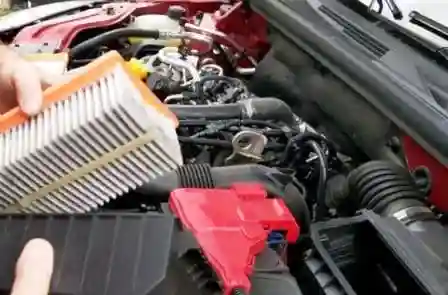

Remove the old filter element and install a new filter in the cassette

 Замена воздушного фильтра Рено Аркана

Install the pencils with a new filtering element in the filter housing and close the lid

Замена воздушного фильтра Рено АрканаЗамена воздушного фильтра Рено Аркана

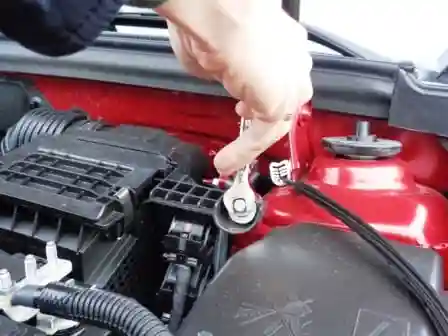

To remove the filter housing, we unscrew the casing key to 10

Замена воздушного фильтра Рено Аркана

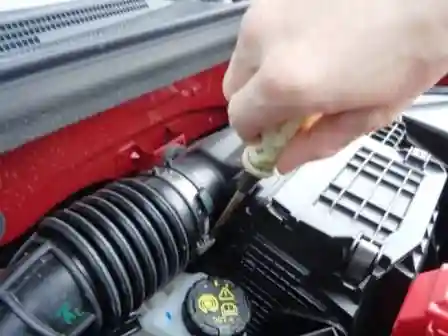

Using a screwdriver unscrewing the aircraft fastening clamps

Disconnect the hose from the air filter housing and take out the air filter
